LED Track 2200B XL Profile (8ft) ****NEW***

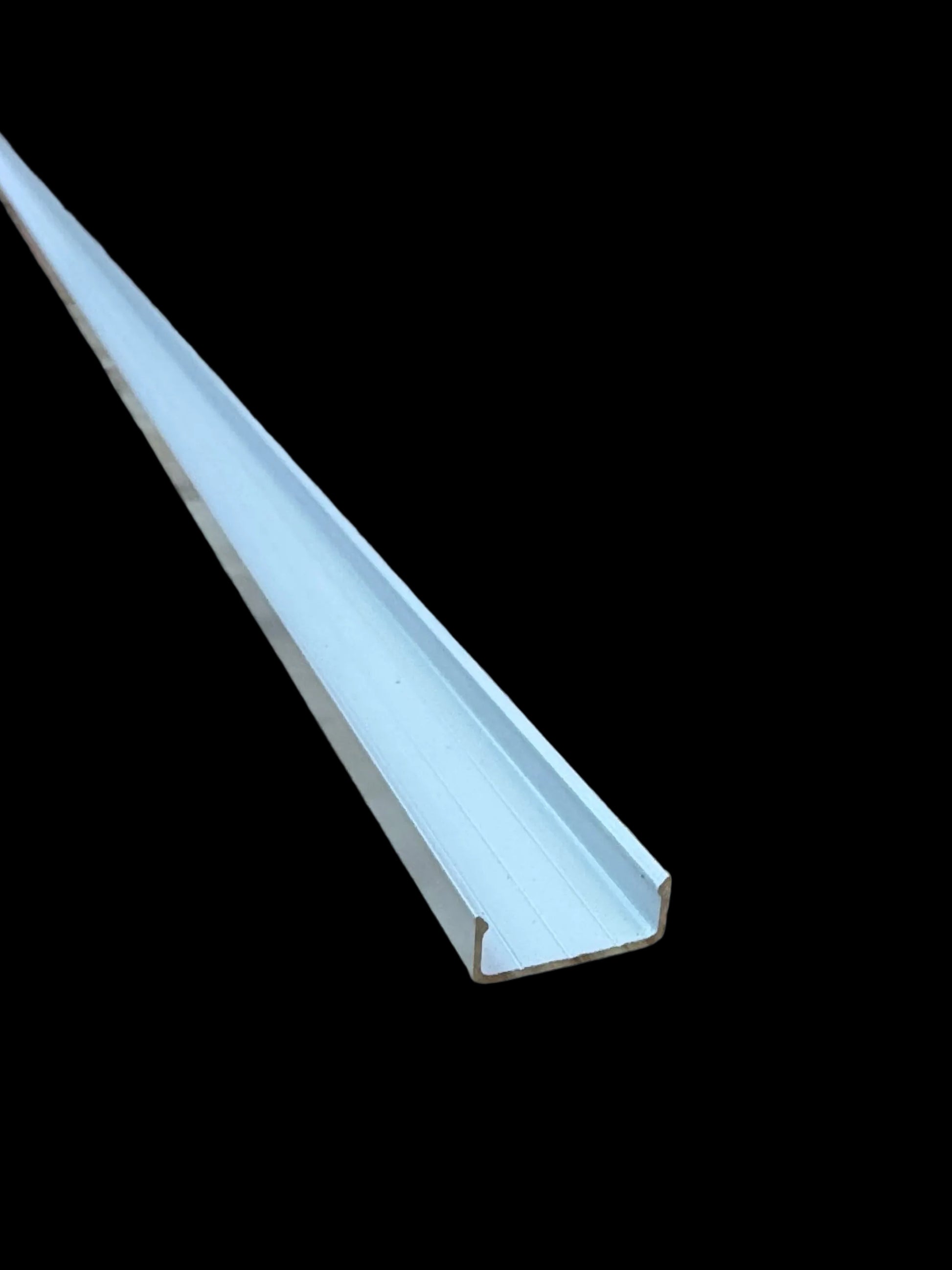

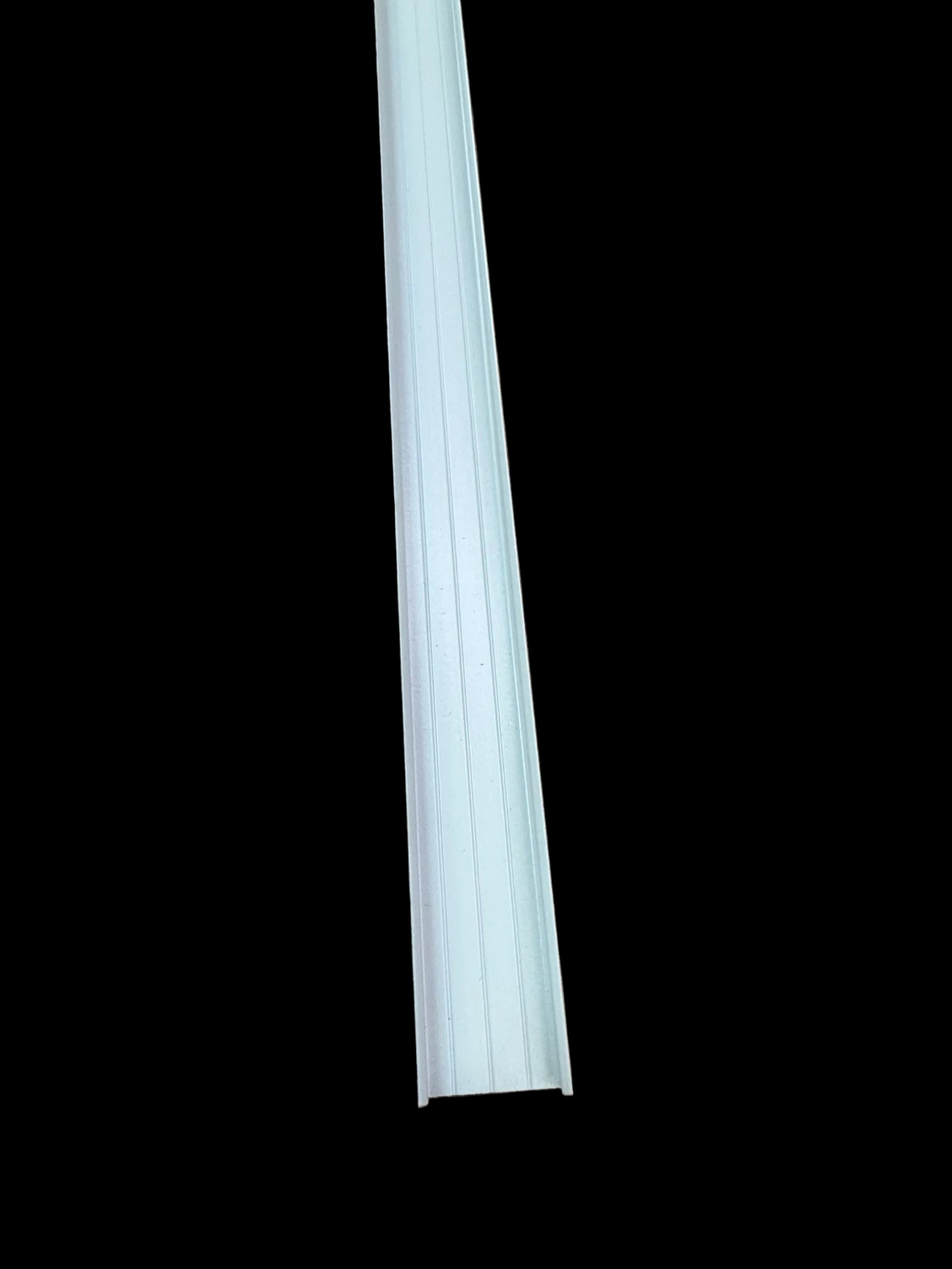

Surface-mounted LED profiles are designed to accommodate and conceal LED strips up to 12 mm wide. Their compact size allows for installation in tight spaces. The included polycarbonate diffusers provide soft, even lighting while reducing glare, making them ideal for both functional and decorative lighting. Perfect for under-furniture lighting, display shelves, showcases, furniture integration, and architectural highlighting. Made from extruded aluminum with an anodized surface treatment, these LED profiles offer oxidation resistance and a long lifespan. Available in standard lengths of 2.44 m (8 ft). Their 15.2 mm internal width allows the use of LED strips up to 12 mm wide. LED installation is simple, and the aluminum base acts as a heat sink for improved heat dissipation. We recommend installing COB LED strips to avoid visible bright spots and shadows. Only one type of diffuser is available: the polycarbonate diffuser, made from a premium imported material that resists yellowing and provides optimal light distribution. End caps and metal clips are included for easy installation.

Specifications:

Model: 657
Material: Extruded Aluminum
Surface Treatment: Anodized
Color: White
Dimensions (W x H): 18.5 mm x 16.7 mm (0.73" x 0.66")
Standard Lengths: 2.44 m (96 in) (8 ft)
Custom Lengths Available: No
Inner Width: 15.2 mm (0.60")
Maximum LED Strip Width: 12 mm (0.39")
Maximum Power: 17 W/m

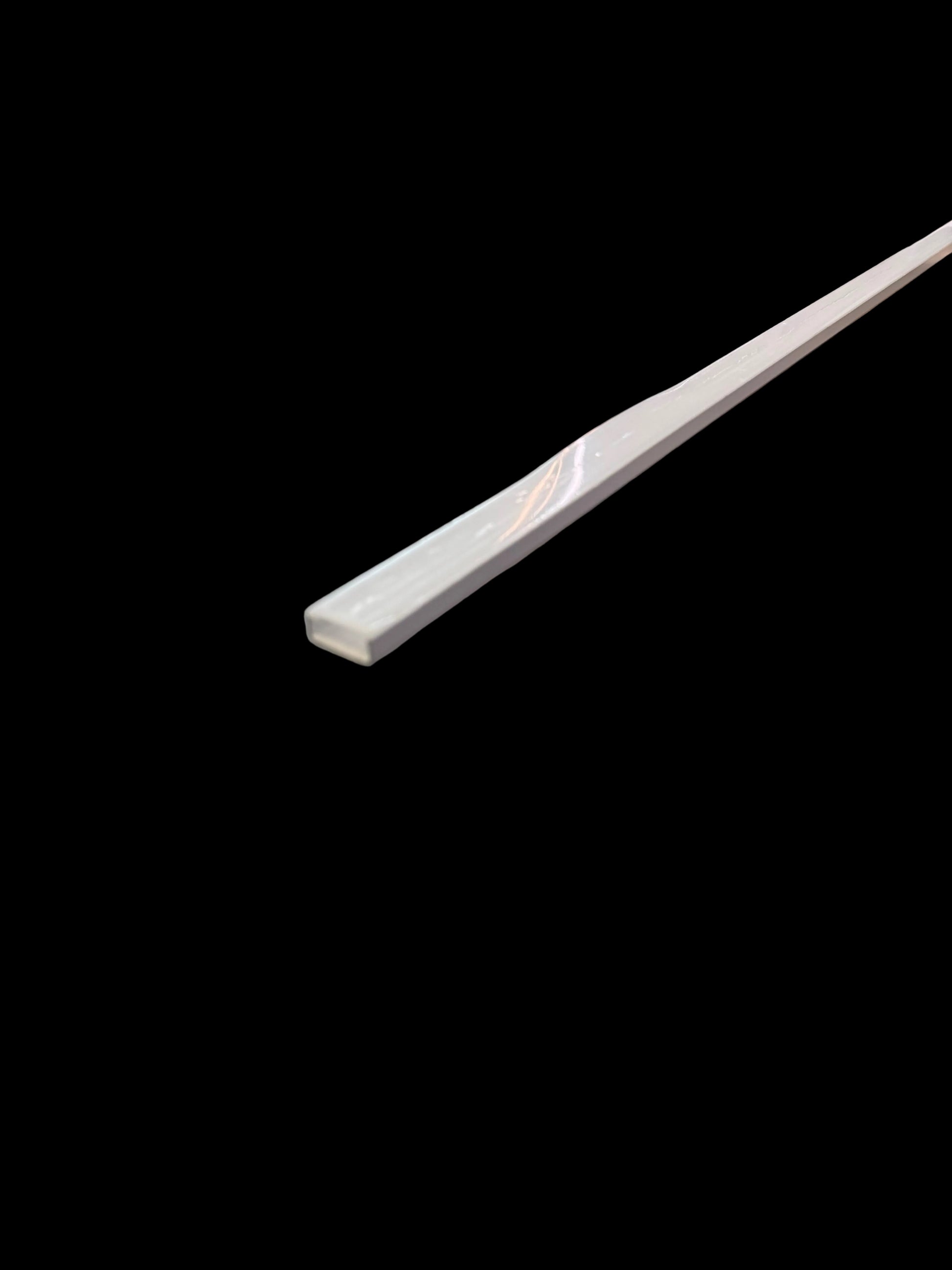

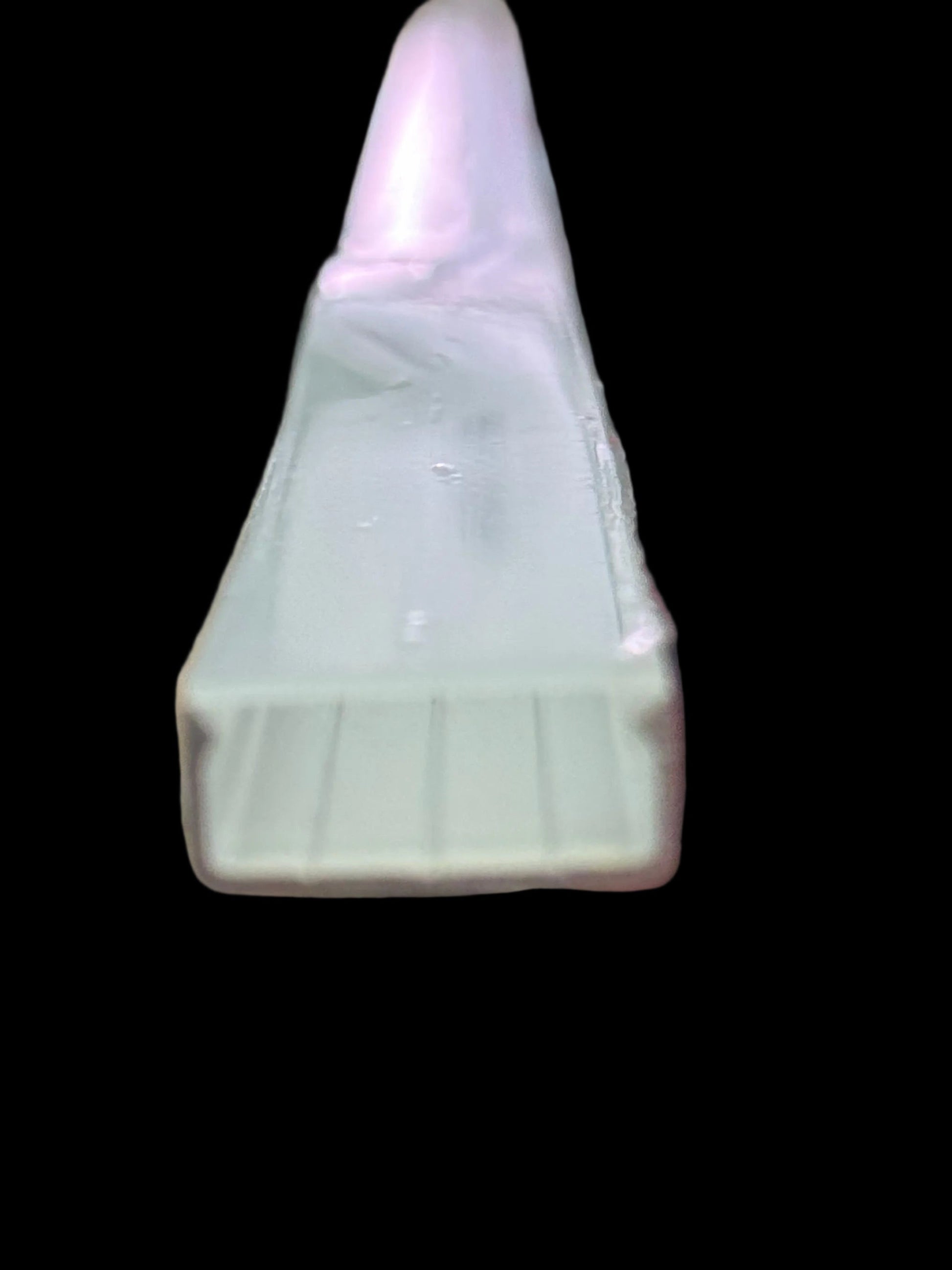

Diffusers: Polycarbonate Diffuser Cover
Beam Angle: 100°
Ingress Protection Rating: IP20 (Not Waterproof)
Endcaps with and without Drilling

Metal Fasteners Included

Installation: Surface Mount

Warranty: 5 Years

Applications:
Under-Shelf and Furniture Lighting
Accent and Decorative Lighting
Focus Lighting Display cases and showcases
Workstation and office lighting
Architectural linear lighting
