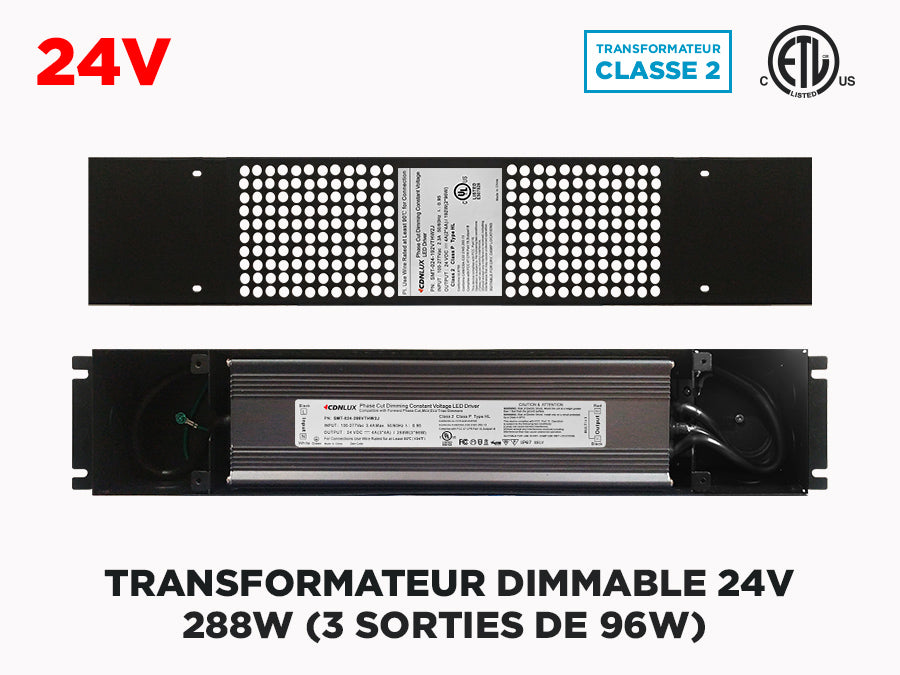

Dimmable 24V 288W (3 X 96W) Constant Voltage LED Driver (Class 2)

Please note that this dimmable transformer is intended for use with standard 110V wall dimmers only and is strictly suitable for single-color LEDs. If you choose RGB, RGBW, or color temperature tunable (CCT) LEDs, dimming will need to be done via the LED controller with a non-dimmable transformer. Single-color LEDs can also be controlled via an ILLUMIDEL controller.

You can now control your Single Color LED Strips from a standard wall dimmer or low-voltage magnetic dimmer with the Illumidel Dimmable Constant Voltage LED Driver. Designed to work with the latest dimmer technology, it allows you to smoothly dim your LED lights and strips from 100% to 20%, without flickering or unpleasant noise. In addition, no minimum load is required to achieve the optimal dimming effect of this Driver.

This 24V DC Dimmable LED Driver is offered with 3 separate 96W (4A) 24VDC outputs, allowing it to meet Class 2 certification standards while giving you a total power of 288W. This driver is much more compact and economical than buying 3 separate 96W drivers.

The Dimmable LED Driver includes two junction boxes (one on the 120VAC side and one on the 24V DC side) containing high-quality cables allowing you to make low-voltage extensions up to 10 meters (16 AWG wire required) if your LEDs need to be connected at a certain distance from your Driver. In addition, this Dimmable LED driver has two mounting plates for easy screwing to a solid surface. For safety, you will be reassured to know that the Dimmable LED Driver is cULus certified for use in Canada and the United States and is equipped with three self-resetting circuit breakers protecting it against short circuits, overvoltage, and overheating.

We recommend giving your driver a maximum load of 80% for residential use and 70% for commercial use.

As direct connections to 120V wiring are required, this product must be installed by a qualified professional.

Dimmable LED Driver 3 X 96W (288W) - 24V (Class 2)
Input: 100 - 120V AC
Outputs: 3 Outputs of 96W (4A) 24V DC – 288W total
Certification: cETLus
Driver Dimensions: 27.6cm x 7.8cm x 4.7cm
Junction box dimensions: 45.5cm x 8.7 cm x 6.0cm
Weight: 2.80kg
